Frameless glass doors
Frameless glass door
Frameless glass door
Frameless glass door
Frameless glass door

Frameless Glass Door System

3240mm
Max Height
Unlimited
Width
10, 12, 15mm
Toughened Safety Glass

Modernise your home with our frameless glass door systems. The unique frameless stacking doors allow you to connect inside to outside with a seamless look and feel.

Our Frameless Glass Door Systems come in three high quality options

Standard System

For standard openings

Premium System

For higher openings

Ultimate

For extra high openings, extreme weather and high wind areas

FULLY INSTALLED BY OUR INSTALLERS
GET A QUOTE
Z

AUSTRALIAN STANDARDS COMPLIANT

Z

ALUMINIUM TRACKS EXTRUDED IN AUSTRALIA

Z

STRUCTURAL AND WIND LOAD TESTED AS2047

Z

CORROSION RESISTANT MATERIALS

frameless stacking doors
Frameless glass door
Frameless glass wall design
Frameless glass doors

Custom options

Our door systems are made to order. With options to suit every application

Product Options
Glass Options
Frame Colour Options
Bottom Track Options
Stacking Options
Specifications
Weather Seal

100% Australian Made

Compliance AS2047 AS1288

6 Year AGWA Warranty

Wind Rated ULS N5 SLS C4

Energy Rated 15mm UValue 5.5 SHGC 0.7

Bushfire Rating BAL 29

Want to find out more?

We’d love to answer any questions you might have on our frameless glass door systems.

We can send you some more info or help you in deciding which options would suit you best.

Simply fill in the form and we will be in touch.

HOPE TO CHAT SOON

    frameless glass door
    Frameless glass door

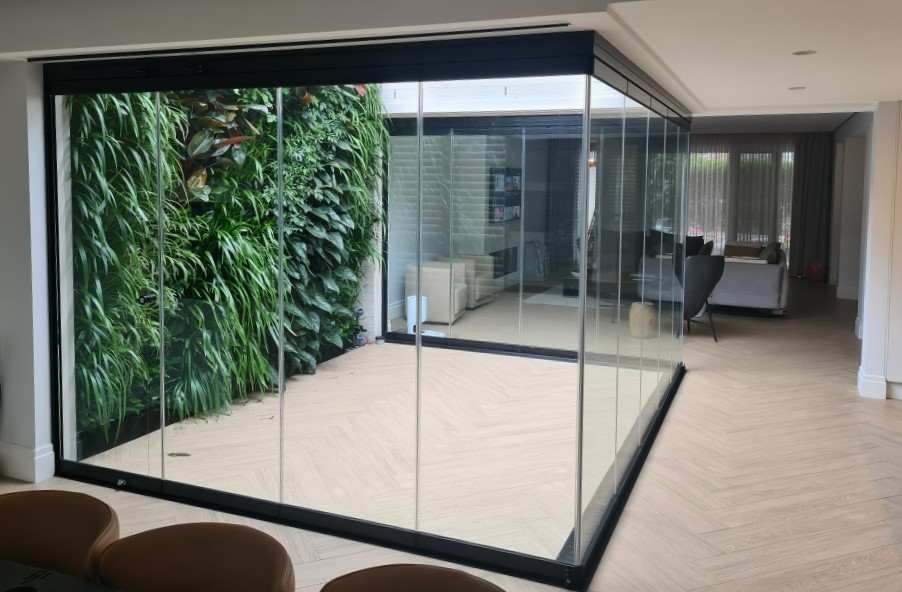

    frameless stacking doors on 90 degree corner
    frameless bifold doors
    Frameless bifold doors
    Frameless glass doors

    Ready to take the next step?

    GET A QUOTE
    TALK TO AN EXPERT

    Option 1

    STANDARD SYSTEM

    Constructed with:

    10mm Toughened Safety Glass

    Max Height:

    2800mm

    Option 2

    PREMIUM SYSTEM

    Constructed with:

    12mm Toughened Safety Glass

    ​
    Max Height:

    3100mm

    Option 3

    ULTIMATE SYSTEM

    Constructed with:

    15mm Toughened Safety Glass

    ​
    Max Height:

    3240mm

    HARDWARE

    All our Rollers are constructed with corrosion-resistant ZZ (sealed on both sides) wheel bearings.
    Capped with polymer plastic caps.
    Hard-wearing, long-lasting, wear resistant.

    CYCLONIC WIND TOLERANT

    Wind loads up to 300km per hour.
    ULS C4

    We use A GRADE Toughened Safety Glass
    because it is:

    • Stronger than annealed glass
    • Good quality A- Grade.
    • High wind load tolerant.
    • Durable, tough and built to last.

    Option 1

    STANDARD CLEAR

    UV TRANS 52%
    U VALUE 5.7
    SHADING CO 0.86
    SHGC 0.75

    Option 2

    TINTED GREY

    UV TRANS 11%
    U VALUE 5.7
    SHADING CO 0.55
    SHGC 0.47

    Option 3

    LOW E

    UV TRANS 42%
    U VALUE 3.6
    SHADING CO 0.75
    SHGC 0.65
    Select the colour of the frame to compliment the design of your kitchen and exterior of your home.

    Our most popular colours are

    SATIN BLACK

    PEARL WHITE

    DUNE

    MONUMENT

    SHALE GREY

    PAPERBARK

    Decide what track you want along the bottom of the panels. If your benchtop is one continuous surface, you might want to recess the bottom.

    Option 1

    BOTTOM TRACK – FULLY RECESSED

    This frame is wider as it is lipped.
    This gives a clean finish to your channel cut line.

    Option 2

    BOTTOM TRACK – STEPPED

    This frame is narrower
    Designed for varying floor levels from inside to outside

    FRAME WITH TRIM [FF]
    Fully Recessed

    This track is sunk into your counter top in a channel 55mm deep.

    It is finished off with neat and sleek lips on each side which give a clean finish to your counter

    FRAME NO TRIM [RS]
    On Top of Counter

    This track can be installed on top of your counter which allows for maximum drainage

    FRAME NO TRIM [RS]
    Stepped

    This track is used when you have two different level bench tops for inside to outside
    Choose how you want your servery window stacked i.e. inside left, outside right etc. You will make this decision based on the way you are going to use the space.

    Inter-Locking Caps

    Extra strength and tight seal is achieved with our male and female end caps. Tightly clipping the panels together when closed to create a strong inter-locked system. Our system is not solely reliant on weather strips for its strength in high winds. The inter-locking ends caps offer you peace of mind in strong winds.

    Weather Seal

    Using a clear UV stable weather seal in a H shape which clips onto one piece and receives the next panel into a tight seal

    ​

    These seals create a tight seal between the glass panels and gives additional strength to the glass when closed

    Inter-Locking Caps

    Extra strength and tight seal is achieved with our male and female end caps. Tightly clipping the panels together when closed to create a strong inter-locked system. Our system is not solely reliant on weather strips for its strength in high winds. The inter-locking ends caps offer you peace of mind in strong winds.

    Weather Seal

    Using a clear UV stable weather seal in a H shape which clips onto one piece and receives the next panel into a tight seal

    ​These seals create a tight seal between the glass panels and gives additional strength to the glass when closed
