Profiles can accommodate 10mm, 12mm or 15mm glass.
Toughened glass is used in every system. Toughened glass is physically and thermally stronger than regular glass.
Toughened safety glass is a Grade A safety glass as per AS1288; up to 500% stronger than annealed glass and can withstand greater wind loads. On breaking it fragments into many small innocuous pieces.
Clear Edge Glass System can be manufactured to heights of 2800mm.

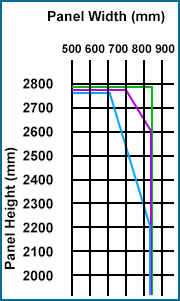

The graph indicated the panel width and height and the glass thickness to be used.
